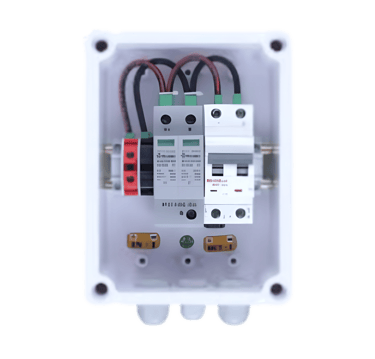

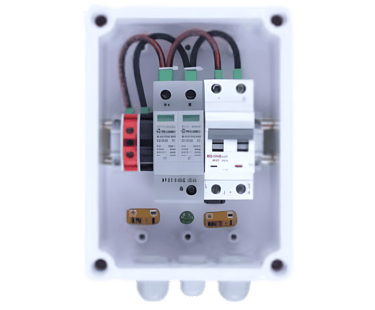

Solar DC Distribution Box (DCDB)

The Solar DC Distribution Box (DCDB) manufactured by JP Power Switchgear and Control is a critical component in a solar photovoltaic (PV) system, installed between the solar panels and the inverter. Its primary role is to aggregate, protect, and isolate the DC power generated by the PV array strings, safeguarding the inverter and providing essential safety during maintenance or fault conditions.

Key Features

• DC Fuses or DC MCBs: Houses individual fuses or DC rated miniature circuit breakers for each PV string.

• DC Surge Protection Device (SPD): Incorporates highly effective DC surge arresters (Type 2 or higher, sometimes Type 1+2).

• DC Disconnect Switch: Features a main DC rated isolator switch.

• IP-Rated Enclosure: Robust, weather-proof, and UV-resistant metal or polycarbonate enclosure.

• Combiner Functionality: Can act as a combiner box, bringing together the DC output from multiple strings into a single output.

Applications

The Solar DCDB is an indispensable component in virtually every solar PV installation, ensuring the safety and longevity of the system:

• Rooftop Solar Installations: Essential for both residential and commercial rooftop PV systems to safely combine and protect DC strings.

• Solar Farms/Ground Mount: Used extensively in utility-scale PV plants for string combining, protection, and isolation.

• Off-Grid and Hybrid Systems: Crucial for protecting battery charge controllers and inverters in standalone or hybrid solar setups.

• Industrial Solar Projects: Safeguards large industrial solar arrays connected to factory power systems.

Why Choose JP Power Solar ACDB?

• Critical DC Protection: We utilize specialized, high-quality DC fuses or DC MCBs and robust DC SPDs, providing uncompromised protection against overcurrents and surges that are unique to DC systems.

• Safety and Isolation: Our DCDBs include reliable DC disconnect switches, ensuring a safe means of isolating the PV array for maintenance or emergency, complying with safety standards.

• Built for Harsh Environments: Constructed with IP-rated, UV-resistant enclosures, our DCDBs are designed for maximum durability and longevity even under extreme outdoor weather conditions.

• Optimized System Integration: With our broad expertise in electrical distribution and control, we ensure the DCDB is perfectly matched to your PV array and inverter, facilitating seamless and compliant system integration.
