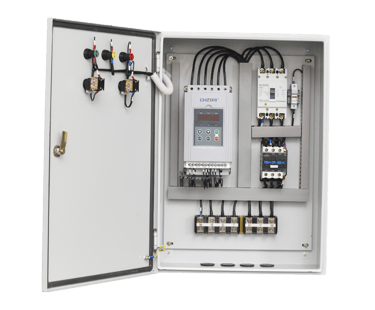

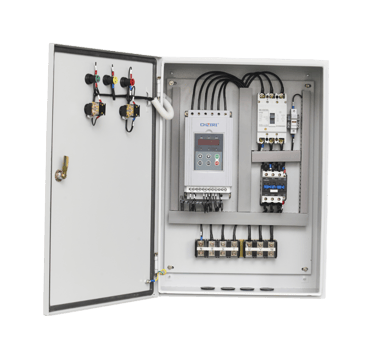

Industrial Motor Starter Panel

An Industrial Motor Starter Panel (MSP) manufactured by JP Power Switchgear and Control is a Low-Tension (LT) assembly designed to control, protect, and isolate large electric motors. It manages the starting method (e.g., DOL, Star-Delta, Soft Starter) and provides crucial protection against faults, ensuring the motor operates safely and efficiently within an industrial process.

Key Features

• Starting Mechanism: Houses components for various starting methods (DOL, Star-Delta, Soft Starter, VFD) tailored to the motor's size and application.

• Protection Devices: Includes Overload Relays (Thermal or Electronic), Short-Circuit protection MCCBs/Fuses), and Single-Phasing prevention.

• Control Circuitry: Includes pushbuttons, selector switches, indicators, and control fuses/MCBs.

• Isolation Provision: Features a lockable main MCCB or isolator switch.

• Interlocking: Includes logic (mechanical or electrical) to integrate with the main control systems (e.g., PLC or DCS).

Applications

Motor Starter Panels are fundamental in nearly all industrial sectors utilizing machinery driven by electric motors:

• Pumping Stations: Controlling high-capacity water pumps in utilities or irrigation.

• Conveyors and Crushers: Managing material handling systems in mining, cement, and material processing.

• HVAC Systems: Controlling large chiller motors and air handling units in commercial and industrial facilities.

• Process Industries: Driving compressors, fans, mixers, and extruder motors in chemical and food processing plants.

Why Choose JP Power Industrial Motor Starter Panels?

• Motor and Process Optimization: We custom-design the starting method (Star-Delta, Soft Starter, VFD) to perfectly match your motor's characteristics and load requirements, ensuring maximum efficiency and reduced wear and tear.

• Superior Protection Quality: We use high-quality, precise protection relays (electronic/microprocessor-based) that offer reliable and fast tripping against all common motor faults, including single-phasing and locked rotor conditions.

• High Durability: Our panels are built with robust enclosures and industrial-grade components designed to withstand the harsh operating conditions and frequent switching cycles typical of industrial environments.

• Integration Expertise: As manufacturers of the entire electrical line (from 11kV switchgear to control panels), we guarantee the MSP will integrate seamlessly and safely with your main distribution and automation systems.
